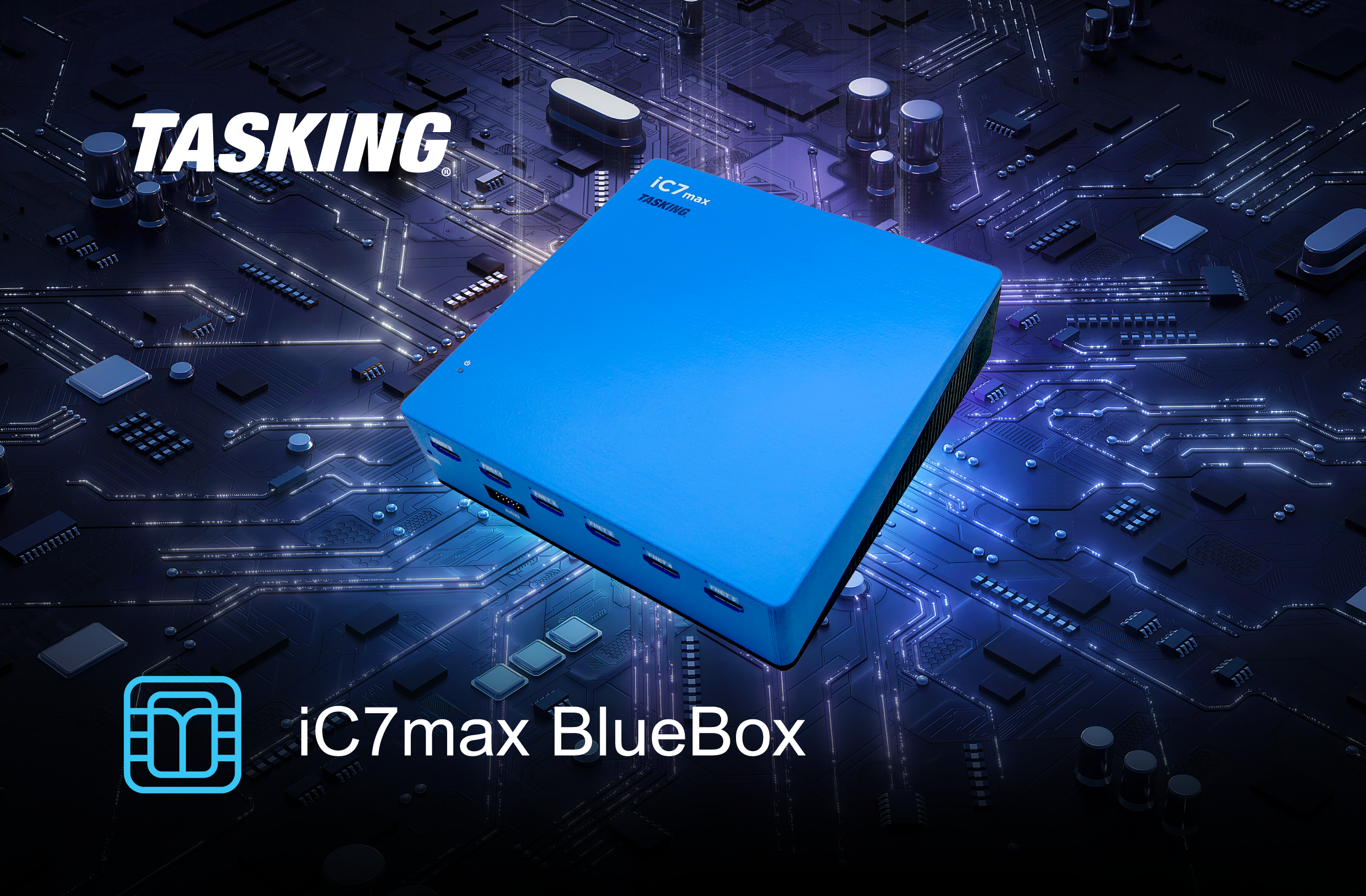

iC7 max BlueBox

The iC7max BlueBox is a next-generation platform designed for efficient flashing, synchronous debugging, tracing and testing of embedded Multi-SoC systems.

In addition to deep insight into the SoC, it adds network observation and precise control and analysis of analog/digital signals - using ADIO and CAN/LIN Add-on modules.

BENEFITS (In addition to iC7pro features)

Synchronization and Multi SoC

  • Synchronous Debug and Trace
  • Multi SoC Debug and Trace ready
  • 6 FNet ports for Active Probes and Add-on modules
  • FBridge for synchronization of two iC7max BlueBox Debuggers
  • Sophisticated internal triggering system

Analog/Digital and Network Trace

  • CAN and LIN Network analysis, synchronized with SoC program and RTOS trace
  • Analog and Digital signal control, protocol analysis (SPI), synchronized with SoC program and RTOS trace

Active Probes

  • For various architectures
  • Higher debug and trace performance
  • Robust design
  • Compact size allows connecting to a Target ECU in a confined space
  • Can be positioned as far as 10m away from the BlueBox

For other details and a comparison table refer to the iC7 BlueBox Debugger family Datasheet.
